When Hackers Build Cameras That Freeze Reality

You've probably seen the effect before—record a ceiling fan with your phone and suddenly the blades appear frozen or rotating backwards. Most people assume it's some quirk of rolling shutter, that artifact that makes guitar strings look wavy in videos. They're half right.

A maker who goes by Excessive Overkill just built a camera rig that deliberately weaponizes this phenomenon, creating footage where spinning saw blades look motionless while cutting through metal, where lathe chucks appear frozen while shaping steel. The result is deeply unsettling—tools making noise, throwing chips, clearly working, but visually static. It's the mechanical equivalent of seeing someone's lips move without hearing sound.

The build itself is a case study in the gaps between consumer and industrial hardware, and what happens when someone with enough technical knowledge refuses to accept those limitations.

The Physics Are Simple, the Execution Isn't

The core principle is straightforward: if your camera captures frames at exactly the rate something rotates, each frame catches the object at the same angle. A four-blade fan spinning at 1800 RPM completes 30 rotations per second, but from the camera's perspective at 30 FPS, it could equally well be completing 7.5 rotations or 120 rotations—as long as the blades land in the same position each frame.

"The freezing effect is determined by two main camera settings," the creator explains. "First is the frame rate, which is how often the camera captures an image... if the rate the camera is capturing images matches the rotational speed of something, the images will be taken at precisely the same point in the rotation, resulting in it appearing stationary."

The second variable is shutter speed—how long the sensor actually gathers light. For normal video at 30 FPS, you'd use a shutter speed around 1/60th of a second. But that produces motion blur. To freeze a spinning object crisply, Excessive Overkill pushed the shutter speed to 1/6400th of a second. For the fastest objects, down to 40 microseconds.

That's where consumer cameras fail. Most don't let you dial in arbitrary frame rates—you get 24, 30, maybe 60 or 120 FPS, and that's it. If your fan doesn't happen to sync with those rates, you're out of luck. Even if you can control the fan speed to match the camera, any variation in rotation throws off the sync.

Enter the Industrial Camera

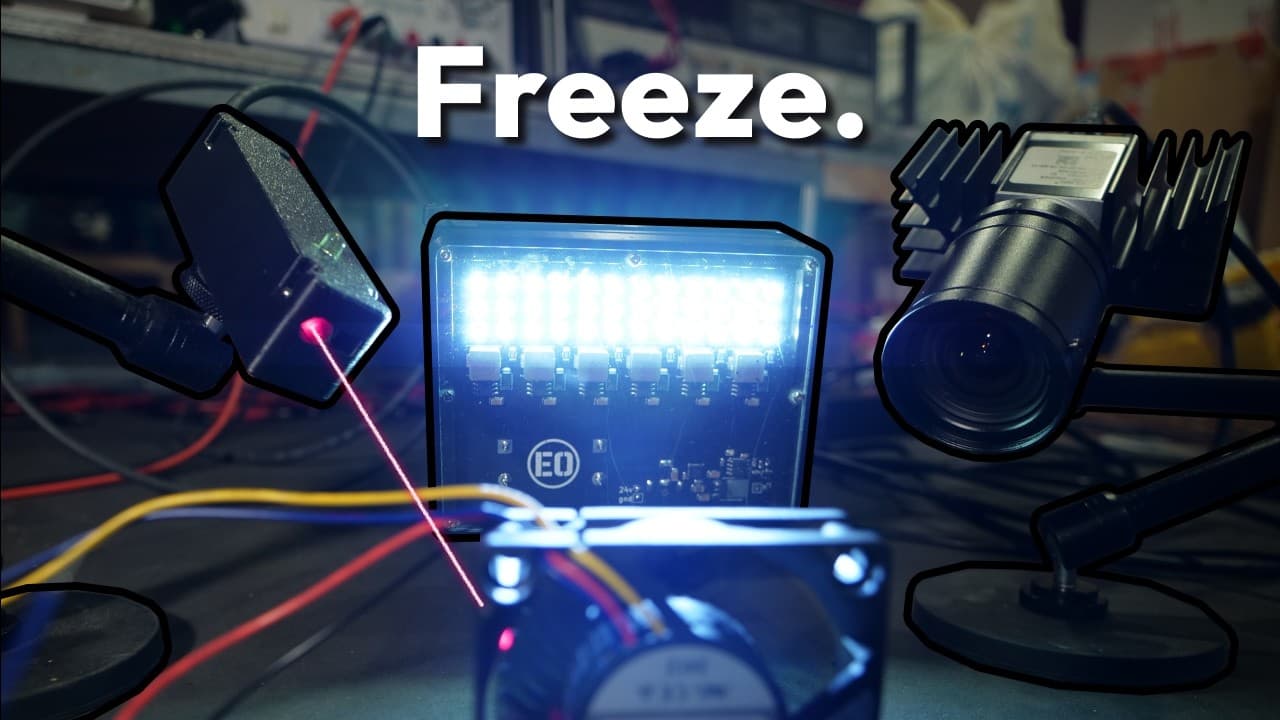

Excessive Overkill's solution was a used industrial machine vision camera from eBay—the kind normally mounted over conveyor belts or on robot arms. No screen, no buttons, no microphone. Just a sensor, an Ethernet port, and dramatically more configurability than any consumer camera.

Crucially, it has a trigger input. Instead of running at a fixed frame rate, the camera can be told exactly when to capture each frame. Excessive Overkill rigged a laser pointer aimed at reflective tape on the spinning object. Each time the tape passes the laser, it triggers the camera. Now the sync is perfect regardless of speed variations—the camera captures at the exact same rotational angle every time, even if the object speeds up or slows down mid-cut.

This is where the hack becomes genuinely clever, solving a problem that wouldn't exist if consumer cameras just exposed these controls.

The Light Problem

But triggering solved only half the challenge. Remember that 40-microsecond exposure time? Normal cameras gather light for 16 milliseconds per frame. Excessive Overkill's setup had 400 times less time to collect photons.

The solution was a custom LED strobe delivering 30,000 lumens in 100-microsecond pulses—350 watts peak, but only 10 watts average because the duty cycle is so low. "Basically, I need to get all the light that would normally hit the sensor in 16 milliseconds to hit it in 150 microseconds, which means I need to give it 100 times more light than usual," he notes.

The light is bright enough that it produces an unexpected side effect: dark objects emit sound when illuminated. "When it's shining on the dark foam on my workbench or I put something black in front of it, it makes a buzzing sound that matches how fast the light is pulsing." The likely explanation: rapid heating and cooling of the material's surface, creating acoustic vibrations.

The strobe also makes the effect visible to the naked eye, not just through the camera. Turn off the room lights, and a spinning saw blade simply stops moving.

Rolling Shutter vs. Global Shutter

The industrial camera has one more critical advantage: a global shutter. Consumer cameras typically use rolling shutters—they capture images one row of pixels at a time, like a scanner moving down the frame. Even with a fast shutter speed, there's significant time between when the top and bottom of the frame are exposed.

For a fast-spinning object, this creates distortion. The object has moved between when the top pixels captured it and when the bottom pixels did. Global shutters capture the entire frame simultaneously, eliminating the problem.

"Global shutter sensors are typically more expensive and have lower performance in some other categories like dynamic range or light sensitivity," Excessive Overkill notes. They show up in specialized applications—industrial inspection, scientific imaging—where geometric accuracy matters more than pretty pictures.

It's a design choice that reveals whose needs manufacturers prioritize. Consumer cameras optimize for the kind of photography most people do most of the time. If you want to freeze a 100-mph saw blade, you're on your own.

Testing on Everything with a Motor

The footage Excessive Overkill captured is genuinely disorienting. A lathe chuck appears perfectly still while cutting threads. A milling machine's end mill looks frozen while facing aluminum. A weed trimmer's string seems motionless while throwing grass everywhere.

"All of these effects look super strange in person since it looks perfectly still to your eyes, but is still making noise. I of course forgot it was still spinning a couple times and accidentally touched it."

Some tools proved more challenging than others. The chopsaw required getting the strobe very close and dropping exposure to 40 microseconds. A drone's propellers were nearly impossible to track—too fast, too variable. A reciprocating saw vibrated so violently it kept throwing off the laser trigger.

The technical constraints matter here. The camera's Gigabit Ethernet connection limits it to around 30 FPS at current resolution settings. For very fast objects, Excessive Overkill has to skip rotations—capturing every second or third rotation instead of every one. The effect still works, but requires more precise timing.

What This Actually Reveals

This project sits in that space where hardware hacking, machine vision, and practical photography intersect—and where the arbitrary limitations of consumer gear become visible. There's no fundamental reason your phone couldn't have a trigger input or configurable frame rates. The sensors are capable. The processing power exists. These features are simply locked away behind market segmentation.

Industrial cameras expose what consumer cameras deliberately hide. They're tools for seeing, not for taking photos you'll post. The difference in philosophy shows up in every design choice.

Excessive Overkill's build is a reminder that the most interesting projects often emerge from refusing to accept those artificial boundaries—from finding the used industrial camera on eBay, designing the LED strobe board, writing the microcontroller code to sync everything. The technical knowledge required isn't exotic, but the willingness to assemble it all into something that shouldn't need to exist? That's the real hack.

The footage will end up as YouTube shorts. The system itself might get refined with a faster camera. But the broader point stands: sometimes the most revealing projects are the ones that make you wonder why you needed to build them yourself in the first place.

—Dev Kapoor
