The Invisible Algorithm Holding the Internet Together

There's a particular kind of engineering nightmare that doesn't announce itself with error messages or smoking servers. It shows up as a gentle, catastrophic degradation: you add capacity to handle more traffic, and your entire cache immediately forgets everything it knew.

Your hit rate drops to near-zero. Your database, which was humming along fine, suddenly faces ten times its normal load. Latency spikes. Users notice. And you're standing there thinking: I just added a server. I was trying to help.

This is the modulo hashing trap, and it's been catching engineers off guard since the early days of distributed systems. The math is simple enough that it feels safe: hash your key, divide by the number of servers, use the remainder to pick which one stores your data. Key 47 mod 4 goes to server 3. Key 48 mod 4 goes to server 0. Clean, deterministic, fast.

Until you need server 5.

Switch from mod 4 to mod 5, and suddenly key 47 doesn't go to server 3 anymore—it goes to server 2. Key 48 moves from server 0 to server 3. In fact, as Nikola Stojiljkovic explains in his breakdown of the algorithm, "when you go from n buckets to n plus 1, only about one out of n plus 1 keys stays on the same bucket number." With four servers, adding one reshuffles roughly 80% of your keys.

Eighty percent. You didn't change your data. You didn't change your application logic. You just tried to scale, and the mathematical foundation of your caching strategy basically detonated.

The Hash Ring: Topology as Solution

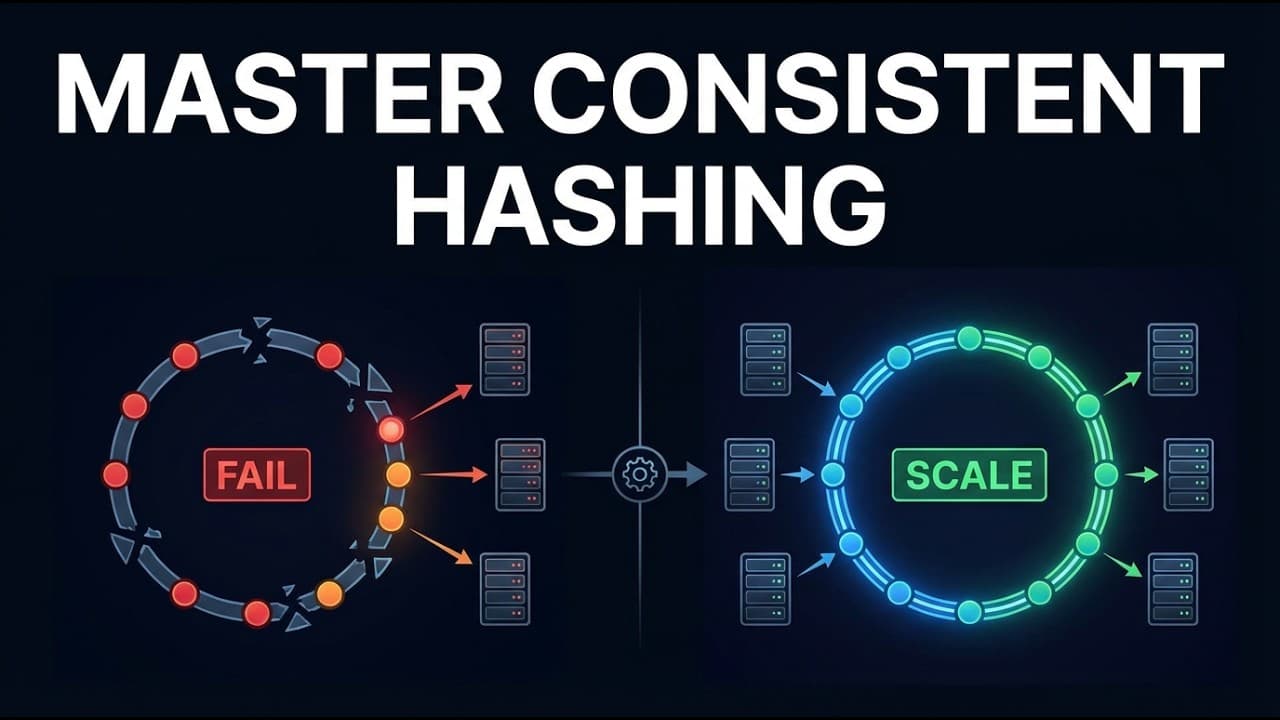

Consistent hashing solves this through a conceptual shift that's almost annoyingly elegant. Instead of dividing hash values by the number of servers, you arrange both servers and keys on a circle—a hash ring.

The mechanics are straightforward: hash your server names, place them as points on this ring. Hash your keys, place them on the same ring. Each key belongs to whichever server you encounter first walking clockwise from the key's position. A key at position 65 on a 0-99 ring goes to the server at position 70. A key at position 95 wraps around and lands at the server at position 12.

"The whole rule is just next server clockwise wins," Stojiljkovic says. In production code, you're not literally walking around a circle—you maintain a sorted list of server positions and binary search for the first one greater than or equal to your key's hash. O(log n) lookup time, which scales just fine.

The beauty reveals itself when you add or remove capacity. Drop a new server onto the ring at position 55, and only the keys between position 40 (the previous server) and 55 change ownership. Everything else stays put. "Instead of reshuffling almost everything, you move only one slice of the ring," as Stojiljkovic puts it. On average, adding one node to n nodes moves approximately 1/(n+1) of the keys—not 80%.

This is the algorithm powering Redis Cluster, Amazon DynamoDB, Apache Cassandra, and the edge networks that serve you cat videos with minimal latency. It's infrastructure you use every day without knowing it exists.

The Problem Consistent Hashing Doesn't Solve

But there's a wrinkle. Consistent hashing eliminates catastrophic reshuffling, but it doesn't automatically guarantee balanced load distribution. Hash functions are random, which means your four servers might land at positions 10, 11, 40, and 90. Now server 4 owns 70% of the ring, while servers 1 and 2 combined own less than 2%.

One machine gets crushed. Three sit mostly idle. This is not a hypothetical edge case—it's what happens when you let randomness do the placement.

The industry fix is virtual nodes, or vnodes. Instead of placing each physical server once, you place it hundreds or thousands of times with slightly different hash inputs—"server-a-1", "server-a-2", etc. Now your ring is covered in tiny server segments that average out to even distribution. When you add capacity, it steals small arcs from lots of neighbors. When it leaves, those arcs redistribute smoothly.

Vnodes also give you weighted distribution for free: if a machine has twice the RAM or CPU, give it twice as many virtual nodes. The load follows automatically.

Replication, or Why Your Data Survives Node Failures

In production systems, you typically want data replicated across multiple nodes. Single points of failure are bad for uptime and worse for sleep schedules. With the hash ring, replication is just continued clockwise walking. Pick the primary owner, then keep going to select the next two (or three, or n) servers as replicas.

With vnodes, you skip over any virtual nodes belonging to the same physical host until you've got replicas on genuinely separate hardware. "Now if any one node fails a neighbor already has the data," Stojiljkovic notes, "and when the ring changes you only copy data for the slices that actually moved."

This matters more than it sounds. Traditional replication strategies often involve complicated coordinator elections, quorum calculations, and careful ordering of operations. The hash ring makes replication almost boring—which in infrastructure terms is high praise.

What Actually Breaks in Practice

The video touches on production considerations that separate textbook explanations from systems that survive contact with real traffic. First: everyone needs to agree on the ring. Clients, routers, storage nodes—same membership list, same hash function. That membership state typically comes from ZooKeeper, etcd, or a gossip protocol where nodes eventually converge on a shared view.

Second: with thousands of vnodes, your ring lookup structure needs real optimization. Sorted arrays work. Binary trees work. Linear scans do not.

Third: cold cache problems. You can't just add a new node and immediately blast it with full traffic. It has no warm cache, no established connections, no ready state. Production systems do gradual rollout—start with low weight, let it warm up, then ramp traffic.

And fourth, hash quality matters intensely. You need stable, well-distributed hashes where collisions are essentially impossible. Pick the wrong hash function and your whole mathematical elegance collapses into clusters and hotspots.

The Alternatives You Didn't Know Existed

Consistent hashing isn't actually a single algorithm—it's a design goal with multiple implementations. The hash ring is the classic, especially when you need vnodes and replication. But rendezvous hashing (also called highest random weight) scores every node for a given key and picks the winner. Clean, well-balanced, but O(n) lookup unless you add complexity.

Jump consistent hash maps keys straight to bucket numbers in O(log n) time, which is beautiful when your nodes are just numbered slots and you don't need weighting. Different tools, same core principle: when the node set changes, minimize key movement.

The hash ring won because it handles the messy realities well—weighted nodes, replication, gradual rollout. It's not the most theoretically elegant solution, but it's the one that survives production.

Next time you add capacity to a distributed system and nothing explodes, there's probably a hash ring quietly doing the work nobody sees. The best infrastructure is invisible until it isn't.

Marcus Chen-Ramirez is a senior technology correspondent for Buzzrag.
